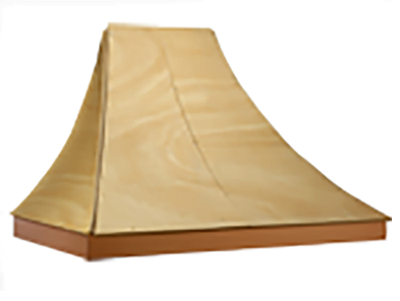

Pre-Assembled Concave Wood Roof & Clad Kit System

Bay World Manufacturing’s pre-assembled wood roof system dramatically reduces roof construction and installation time.

A “Time Saver” Extraordinaire!

The Concave Roof is available for all Bay & Bow Window Styles

  • 3/4″ exterior grade plywood construction with 2×2 rafters.
  • Top panels are screwed into place and are easily removed to attach unit, complete hanging system assembly and insulate.
  • Standard roof back height is 12/12 pitch, back height equals the exterior projection of the window, plus 3 1/2″.
  • Custom roof back height can be specified with no additional cost.
  • Roof system is designed with a 3 1/2″ overhand (soffit) and fascia.

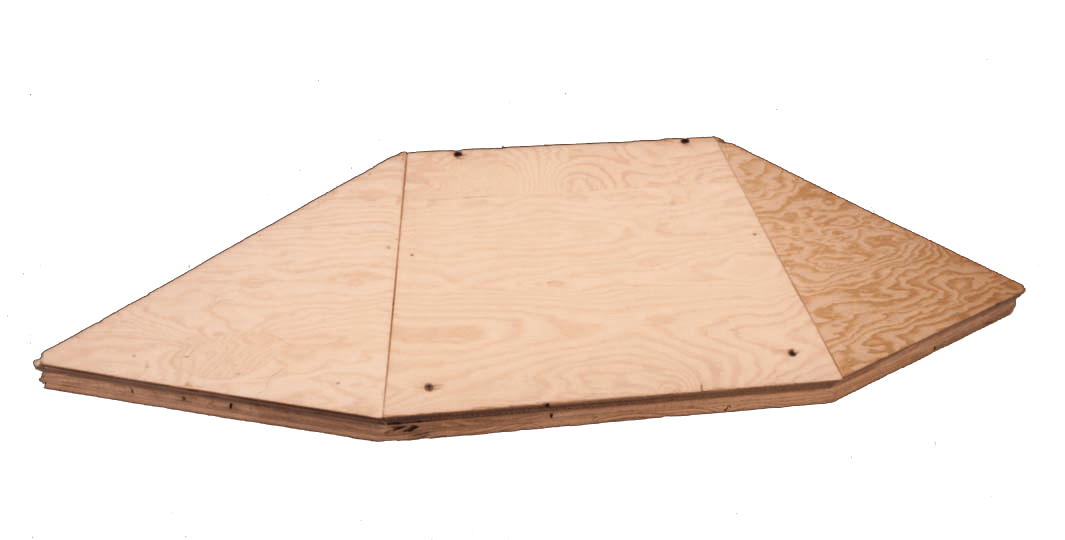

Standard Hip Style Wood System

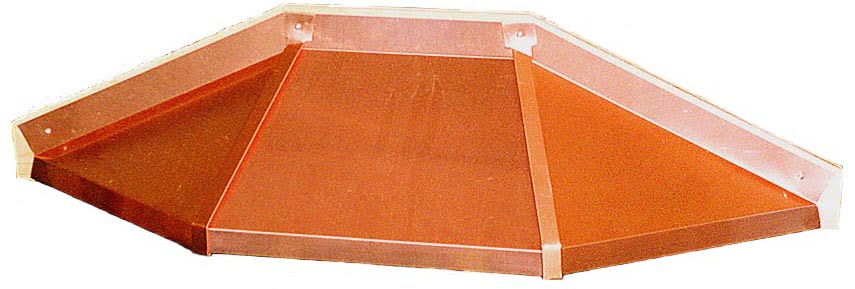

Standard Hip Style Copper System

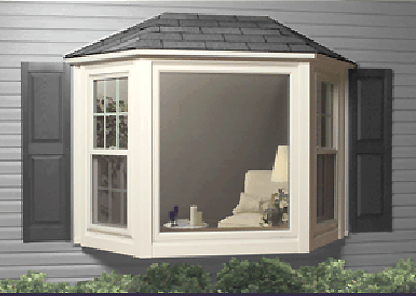

Standard Hip Style System with Shingles
Standard Hip Style Copper System

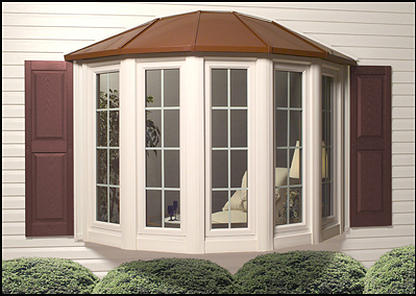

Bow Windows with Hip Style Copper System

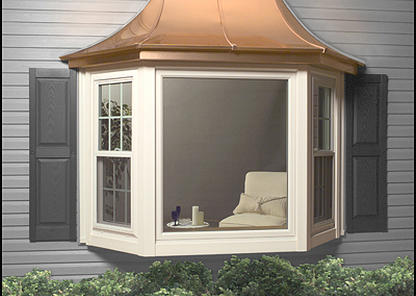

Bay with Copper Concave Roof System

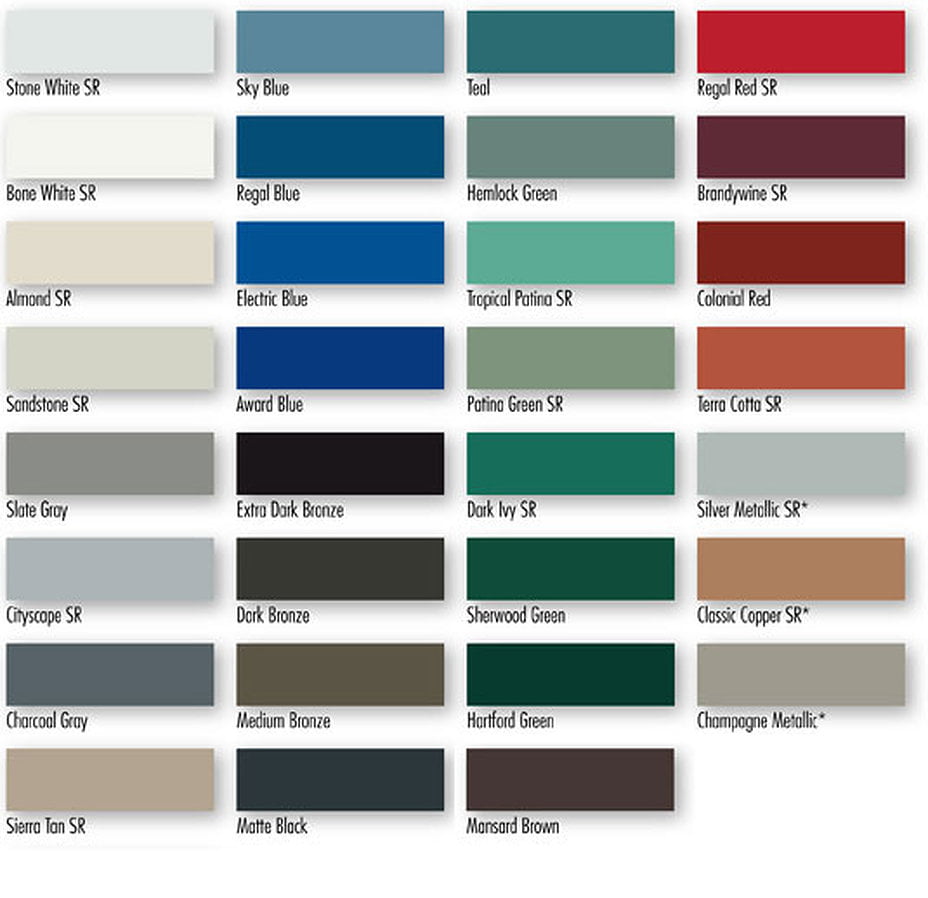

Roof Decorator Colors

Colors may vary on your computer screen. For a true color representation, please contact us for actual metal sample(s).
